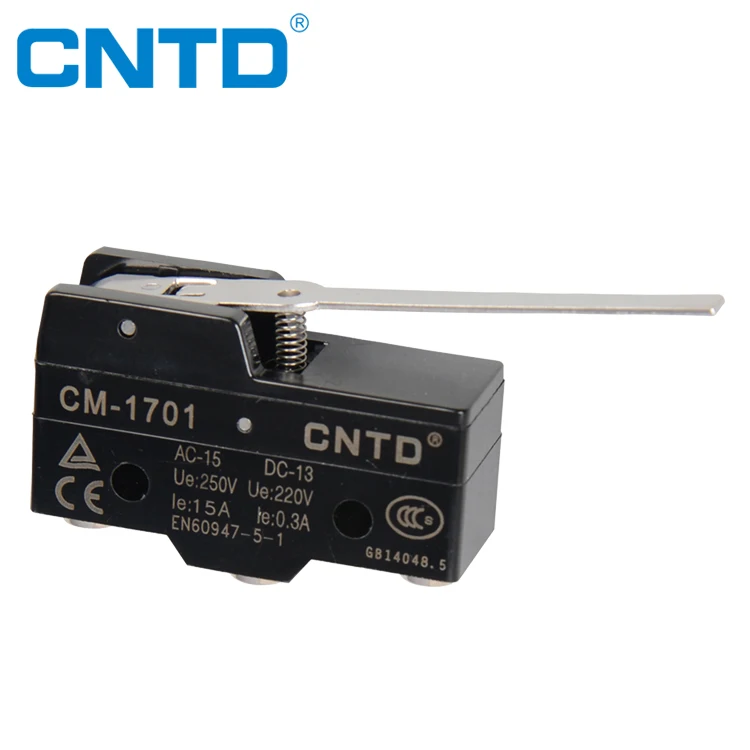

CNTD brand Factory Supply Price Micro Switch T125 5E4 5A 250VAC with Screw Terminal Z-15GW-B(CM-1701)

FOB Reference Price:Get Latest Price
US $0.7-1.2 / Piece | 10 Piece/Pieces Micro Switch Sample is available for testing. (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
Ningbo/Shanghai Port, China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CNTD
Model Number:
CM-1701
Max. Current:
10A
Max. Voltage:
250VAC
Operating Temperature:
-10~+80C
Protection Level:
IP40
Item Name:
Micro Switch
Material:
Plastic
Contact Form:
NO, NC
Operation speed:
0.5mm-50cm/sec
Operation frequency:
Mechanical: 120times/min; Electrical: 30times/min
Ambient temperature:
-10℃ to +80℃
Humidity:
<95% RH
Degree of protection:
IP40
Certificate:
TUV, ISO9001, CCC, CE
Packaging & Delivery
Packaging Details
360pcs in one carton (standard export packing);
N.W/G.W: 15/16KG
Carton size: 39.5x33x29.5CM
Delivery Time
In 3-7 working days after deposit confirmed



CNTD brand Factory Supply Price Micro Switch T125 5E4 5A 250VAC with Screw Terminal (CM-1701)

Product Details

Features

  • Various of actuators, the operation position is adjustable (such as CZ-7121)
  • Outer shell covered with intensive plastic, the mechanical strength is better than CM series micro switch, bear hitting.
  • Small volume, water-proof and oil-proof construction
  • Easy-to-wire circuit opening design
  • Wide variety of actuators, easily use

 You are here:Home>> Micro switch >> CM Series



Product Description

Dimension









Product characteristics



Model No. CM-1701
NameMicro switch
Operation speed 0.01mm-1m/sec
Operating frequency Mechanical: 240times/minute, Electrical: 20 times/minute
Contact resistance15mΩ max.(initial value)
Insulation resistance100mΩ min.(at 500VDC)

Dielectric strength

1000VAC,50/60HZ for 1 minute between terminals of the same polarity

1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts

1500VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration10-55HZ,1.5mm double amplitude

Shock

Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S)

Life

Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above

Weight

About 22 to 58g

Degree of protectionIP40
Payment term30% deposit in advance,70% before shipment,100% T/T in advance
CertificateTUV, CCC,CE,ISO9001
Logo      Customized logo with Decal / Frosted / Print are available as request

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)





Rating



Rated Voltage

(V)

Noninductive Load

(A)

Inductive Load

(A)

Inrush Current

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

NC

NO

125VAC

250VAC

500VAC

15

15

3

3

2.5

1.5

1.5

1.25

0.75

15

15

2.5

5

3

1.5

2.5

1.5

0.75

30 max.

15 max.

8VDC

14VDC

30VDC

125VDC

250VDC

15

15

6(2)

0.4

0.2

3

3

3

0.4

0.2

1.5

1.5

1.5

0.4

0.2

15

10

5

0.05

0.03

5

5

5

0.05

0.03

2.5

2.5

2.5

0.05

0.03






Related Products



Certifications

      Tiande Company has passed ISO 9001:2000 quality system authentication,CCC,CE certificates and the German TUV certification. All of our products are strictly according to IEC standard and guaranteed by People's lnsurance Corporation of China (PICC).

Our Services

    Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation.Tiande wishes to cooperate with clients from all over the world to create brilliant future.

Production Flow

      Tiande Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,Tiande insists on developing business with science & technology and researching and developing new products continuously.

Packaging&Shipping

1.Thousands of products in stock and ready to ship

2.The most competitive pricing

3.Various shipping ways for reference

4.Putting the customer's needs first,always

5.On call,24 hours a day,7 days a week

Company Information

      Zhejiang Tiande Electrical Co., Ltd. is one of the leading manufacturer in China which specialized in various of limit switches,proximity sensors,optoelectronic switch,micro switches,pushbutton switches,terminal blocks, warning lights etc.Our products applied to automatic controllers, electronic meters,medical facilities, communication equipments, auto&motorbike electrical appliances,household appliances etc.

    With more than 15 years' experience in switch field,Tiande company has mature craft,advanced technology and strong technical power,which enable us to have comprehensive ability on researching,developing, designing and prduction,and present obvious advanced ability and profession.



FAQ

1. Q:  Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q:  How about the guarantee of the items?
A: According to the actual situation. If it's simple, it's free charge.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: CE,TUV,ISO etc.
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.

7. Q: How long to make a sample?
A: If we have stock, I'll send you soon.
8. Q: What payment is acceptable?
A: T/T or L/C at sight.PayPal is accaptable for samples.



 Over 15 years OEM experience, we can provide professional solutions for customers.
